1. STP is a layer 2 Protocol which is used to avoid loops and provide path Redundancy. STP is defined as IEEE 802.1D standard.
2. STP use messages (known as BPDUs) between switches to stabilize the network into a logical loop free topology.
3.By default STP is enabled for all active VLANs and all ports of switch.

Why Loop?

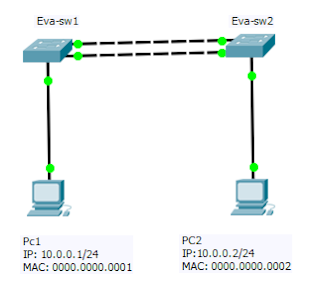

As per topology, we have two PC, one is connected to Eva-sw1 and one is connected to Eva-sw2.
1. PC-1 which is connected to Eva-sw1 wants to send traffic to PC-2 which is connected to Eva-sw2.
2. PC-1 lookup’s for PC-2 MAC address in its ARP table. If MAC address is not found, PC-1 will send ARP Request for MAC address of PC-2 (using PC-2 IP Address) and sends frame to Eva-sw1.
3. When Eva-sw1 receives frame than learns MAC address based on source address and adds PC-1 physical address in its MAC Address table that PC-1 is connected on fa0/3. After that, Eva-sw1 will broadcast ARP Request packet in network.
4. Eva-sw2 will receive broadcast frames from Eva-sw1 via fa0/1 and fa0/2 and Eva-sw2 will forward it out of each interface except the interface where it received. This means that frame was received on fa0/1 will be forwarded on fa0/2 and same way frame which received on fa0/2 will be forwarded on fa0/1.
5. So a loop will occur in network. Both switches will keep forwarding over and over until we disconnect cable because at layer 2 we don’t have TTL kind of feature to avoid loop.

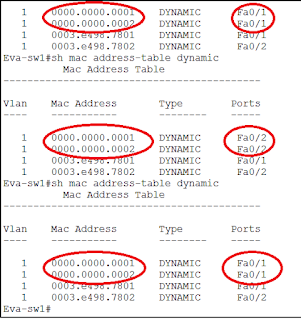

I have disabled STP and checked “show mac address-table dynamic” output as below where we can see MAC address is flapping between different interfaces like fa0/1 and fa0/2.


**if loop is created than following problem occurs:-

  1. Broadcast Storm
  2. Mac Address table Instability
  3. Multiple frame Transmission

The Layer 2 traffic can be classified as unicast, multicast, and broadcast. Broadcasts and Multicasts are required for the normal operation of the network. MAC addresses for broadcast and multicast are given below.

  • Broadcast Destination MAC address – FF:FF:FF:FF:FF:FFF
  • Multicast Destination MAC addresses – 01:00:5E:00:00:00 to 01:00:5E:7F:FF:FF

For broadcast and multicast traffic switch needs to forward the frame out all its ports.

How STP is works:-

  1. One Root Bridge per N/W or per VLAN
  2. One RP per Non-RB
  3. One DP per Segment
  4. Non-designated ports are unused/Blocked.

1st. Root Bridge Selection Process:-A switch which has Lower Bridge Id become RB. Bridge Id consist three things:-

  1. Bridge priority
  2. Extended system ID (Why this is used?
  3. Mac address

When the extended system ID is not enabled, STP uses one MAC address per VLAN to make the bridge ID unique for each VLAN. We can enable it by using “spanning-tree extend system-id” command. One important thing recent switches don’t allow this command to be removed even though it is displayed in the running-config and always use system ID extension.

If you have a network device in your network with the extended system ID enabled, you should also enable the extended system ID on all other Layer 2 connected network devices to avoid undesirable root bridge election and spanning tree topology issues.

2nd. Root Port Selection Process: – A forwarding port that is the best port from Non-RB to RB.

  1. Lowest Root Path Cost to Reach RB
  2. Lowest sender bridge id
  3. Lowest sender Port-ID [Port Priority + Port number]
  4. Lowest Local Port-ID [Port Priority + Port number]

To have better understanding please apply your logic in below topology.

Path cost and Port ID (Port Priority) can be used to influence the RP selection.

3rd. Designated Port selection Process:-A forwarding port is elected for every LAN segment. DP is responsible to forward BPDU and frame to that LAN segment.

  1. Lowest Root Path Cost to Reach RB
  2. Lowest sender bridge id
  3. Lowest sender Port-ID [Port Priority + Port number]
  4. Lowest Local Port-ID [Port Priority + Port number]

4th. All other ports go into Blocking Mode

Show Spanning-tree vlan XXX detail

Focus on following thing

  1. Port Path cost = cost of Port
  2. Designated root=RB
  3. Designated Bridge Id = ID of switch which has DP.
  4. Designated Path Cost=Path cost to reach RB from designated bridge.

Let’s have a look in below topology

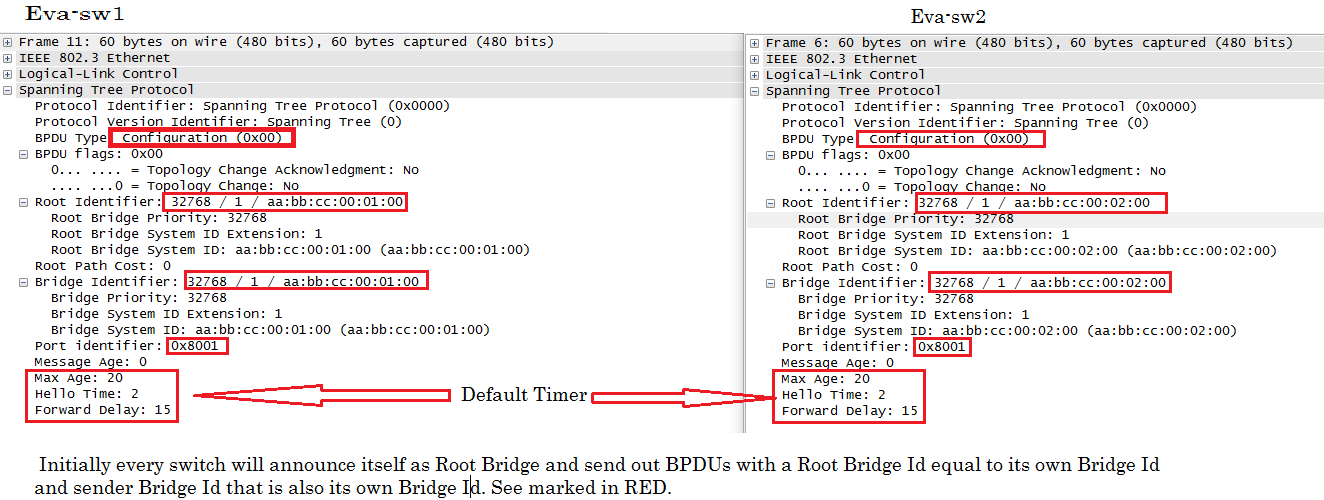

1. Initially every switch will announce itself as root bridge and send out BPDUs with a root bridge id equal to its own bridge id and sender bridge id that is also its own bridge id.

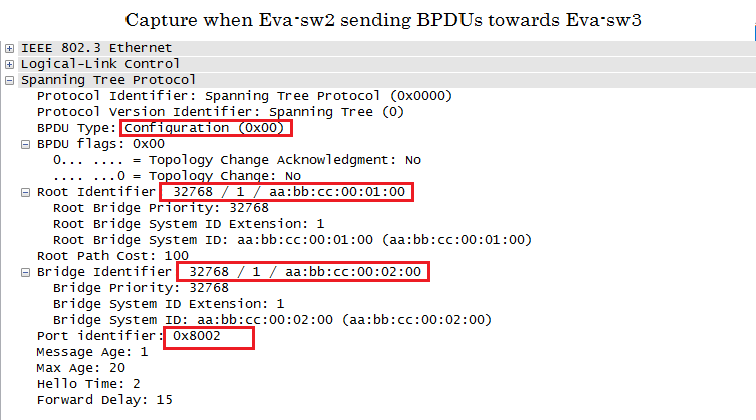

2. Once BPDUs are exchanged between switches they will do election based better bridge id and starts advertising this new Root bridge id in its BPDUs. Let’s see the capture

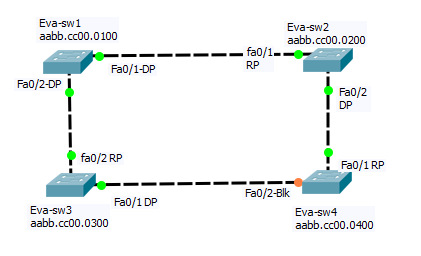

Let’s understand STP election process using below Topology:

In above Diagram Eva-sw1 will be elected as RB.Why?

Because Eva-sw1 has lower bridge id as all switch has same priority but eva-sw1 has lower MAC address so it’s selected as Root Bridge as mention in root bridge election process. All port will be in forwarding state at RB.

RP election:

A. Fa0/2 at Eva-sw3 is selected as RP because lowest path cost to reach RB. Same way at Eva-sw2 fa0/1 will be selected as RP.

B. At SW4, we have two ways to reach RB with same Path cost via fa0/1 and fa0/2 means we have to go next tie breaker.

C. As we know next tie breaker is Sender bridge idfor RP election so as per topology sender bridge id is lower from fa0/1 so this port will selected as RP.

DP Election:

As per topology all ports at RB becomes DP but what about LAN segment between Eva-sw3 and Eva-sw4?

There should be one DP in that segment which is elected based on DP criteria and port at Eva-sw3 will become DP as lowest path cost from Eva-sw3 to reach RB.

STP state:-


1. Don’t send/received BPDUs.
2. Mac address Table is not Updated.
3. Data frame is not forwarded


1. Don’t send BPDU but receive the BPDU
2. Mac address Table is not Updated.
3. Data frame is not forwarded


1. Send/received BPDUs
2. Mac address Table is not Updated.
3. Data frame is not forwarded
4. Forward delay 15

Q. Why listening state in STP?

Ans. During Listening state Switches will make decisions on which port is Rootport and
which are DP ports.


1. Send/received BPDUs
2. Mac address Table is Updated.
3. Data frame is not forwarded.
4. Forward delay 15


1. Send/received BPDUs
2. Mac address Table is Updated.
3. Data frame is forwarded.

*** STP Port state transit: Blocking –> Listening — > Learning — > Forwarding


Bridge Protocol Data Units (BPDUs) are containing information regarding the Root ID, Bridge ID, and path cost etc.

A bridge sends a BPDU frame using the unique MAC address of the port itself as a source address, and a well-known destination address of the STP multicastaddress 01:80:C2:00:00:00(on Native VLAN to STP).Cisco switch send s PVST+ BPDU to STP MAC address 01-00-0c-cc-cc-cd. Non-cisco devices floods the BPDUs because destination MAC address is an unknown Multicast Address.

BPDU Format for STP

Bytes Field
2 Protocol ID Always 0. Future enhancements to the protocol might cause the Protocol ID values to increase.
1 Version Always 0. Future enhancements to the protocol might cause the Version value to increase.
1 Message type BPDU Type(configuration=00 ; TCN=80
1 Flags Used to handle changes in the active topology

LSB(least significant Bit)=TC flag

MSB(Most Significant Bit)=TCA flag

8 Root ID Bridge ID of Root
4 Cost of path Cost to reach RB
8 Bridge ID BPDU sending Bridge ID
2 Port ID BPDU sending Bridge port ID
2 Message Age Seconds since root originated the BPDU.
2 Max Age time Maximum time that a BPDU is saved.
2 Hello Time Time between periodic Configuration BPDUs.
2 Forward Delay Time interval spends in each of the listening and learning

There are two type of BPDU:

1. Configuration BPDU: – Generate by RB and used for spanning-tree calculation means it used to determine topology and stop/start forwarding at ports as required.

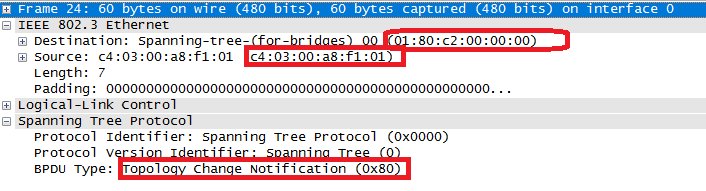

2. Topology Change Notification (TCN):-Topology change notification BPDU flows toward the RB to inform that active topology has been changed. TCN BPDU does not carry data about the change but informs recipients only that a change has occurred.


A. When a switch discovers topology change, it generates TCN BPDUand sends TCN on its root port. Upstream switch responds back to sender with TCA BPDU. In our topology TCN is generated by Eva-sw4 and TCA is sent by Eva-sw3.



B. Upstream switch generate another TCN BPDU and send out via its Root port. Process continuous until RB receives the TCN BPDU.

C. Root sends a TCA back to sender and then sends a configuration BPDU with TC flag. This configuration BPDU with TC flag is received by every switch in the N/W to make them aware of N/W topology change and switches reduce their MAC aging time from default 300sec to forward delay value for the duration of the topology change. This causes recently idle entries to be flushed, entire VLAN.

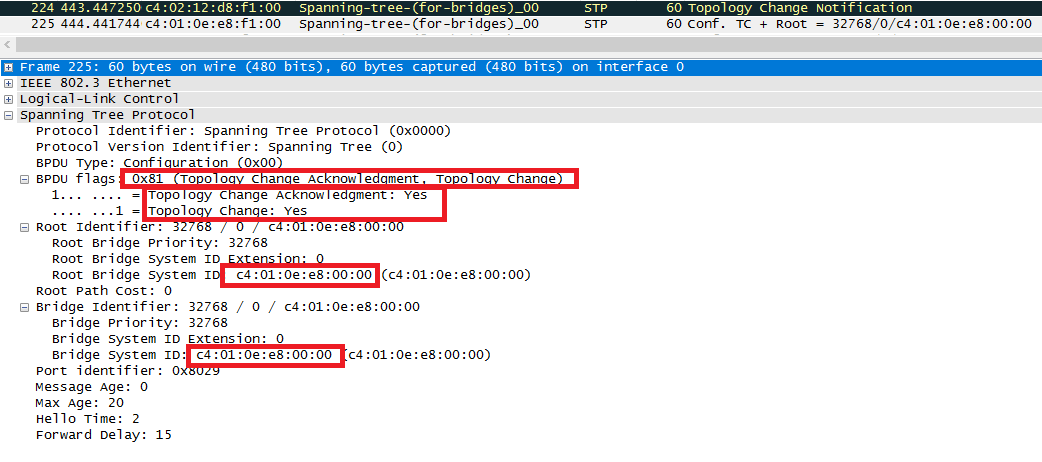

D. RB continuous sends configuration BPDUs with TC flag set for a period of Max_Age+Forward_Delay, which is 20+15=35 seconds by default then clears the TC flag. Means aging time stays 15sec for the duration of Max_Age+Forward_Delay. Once TC flag is cleared by RB Aging time will be reset automatically.

Direct Failure Vs Indirect Failure:

The failure type is always taken from the perspective of a particular switch. Same failure will be either direct or indirect, depending on the switch’s relation to the failed link.

Direct Topology Change: Direct topology changes are the changes that can detected immediately on switch
interface like a link failure, cable unplugged port admin down.Direct failure means failure is detected immediately and switch will immediately expire Max_Age timer and invalidating all current configuration BPDUs.

STA will handle failure as below:

1. Blocking Port: Nothing will happen, only expire information associated with failed port.

2. DP: Local switch does nothing. However downstream switch may detect loss of a root port and start reconverging.

3. RP: Information stored with RP is invalidated and will elect new RP based on stored info and found port will start transiting through listening.

A. Information stored with RP is invalidated and will elect new RP based on stored info and found port will start transiting through listening.

B. If there is no more RP port left after link failure, bridge declare itself as root and starts announcing that in BPDU downstream will ignores this info until old information expire.
Let’s take an example:

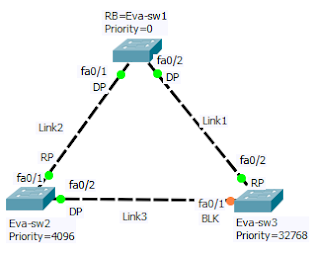

As discussed let’s assume Link3 went down mean there is direct failure for Eva-sw3 at blocking port means nothing will happen. Same there is direct failure for Eva-sw2 at Designated Port means local switch does nothing but don’t forget about TCN generation process i mean TCN process is remain same as we discuss earlier.

Let’s assume Link1 went down means there is direct failure for Eva-sw3 at Root Port so Eva-sw3 will invalidate the information stored with RP and check for new Root Port as Eva-sw3 are receiving BPDUs from Fa0/1 so fa0/1 will go throug the listening and learning state and it takes 30 secs to end up in forwarding state.

Indirect Failure

An indirect failure is not detected immediately and relies upon configuration BPDUs not being received for the duration of MAX_Age timer.

Let’s take the same example for understand it.

Let’s assume Link2 (between Eva-sw1 and Eva-sw2) is down.One thing don’t confuse with TCN process.
1. When Link goes down, Eva-sw2 immediately detects the failure as its direct failure and assumes it is the root. It starts sending BPDUs to Eva-sw3 and claims to be the new root.
2. When Eva-sw3 receives this new BPDU from Eva-sw2, it realizes it is inferior BPDU to the one it had stored for port Fa0/1 previously and start ignoring it.
3. After Max_Age timer expires, the BPDU stored on Eva-sw3 for port fa0/1 ages out. The port goes immediately to listening and Eva-sw3 starts sending its better BPDU to Eva-sw2.
4. As soon as Eva-sw2 receives the BPDU from Eva-sw3, it stops sending its BPDU.
5. Link3 moves to the forwarding state through listening and learning states.

Whole story says we took 50sec (Max_Age + 2*Forward_Delay) to recover from Indirect failure.

Uplink Fast vs Backbone fast

  •  Uplink fast and backbone fast is Cisco proprietary feature.
  • Uplink fast is used to detect direct failure whereas backbone fast is used to detect indirect failure.
  • As we discussed direct failure takes 30 secs to end up in forwarding state and indirect failure takes 50sec to end up in forwarding state. So Cisco introduces these two features to minimize the recovery time from direct and indirect failures in network.


Uplink Fast is used when a direct root port failure should reconverge immediately by passing listening and learning state on blocking port. Means we are saving 30sec by using UplinkFast.

It does this by implementing two additional features behind the scenes.
1. When a switch is configured with UplinkFast, its Bridge Priority is changed to 49,152 (default is 32768) and all of its port costs are increased by 3000. Basically if we have a very high priority/cost on the switch/links we will most likely be excluded from someone else’s path selection.
2. The switch will also take the entire CAM table and spoofs the source from the original Root port to the new uplink using destination 0100.0ccd.cdcd. It will send the MAC to the upstream switch – which will clear its local MAC address table for the original interface and updates the source to the new uplink. This results in sub-second convergence when the directly root port goes down.

3. Remember that uplink fast cannot be configured on a ROOT switch. When we enable UplinkFast, it affects all VLANs on the switch. This feature not support on per VLAN basis and Per port Basis. We configure Uplinkfast on switch where we have blocking port.


BackboneFast reduces the default convergence time in situations where the root port is lost and the backup link leads through a different switch. The convergence is reduced by 20sec from the default 50sec in such scenarios.

Let’s take same example of indirect failure.

  1. When Link goes down, Eva-sw2 immediately detects the failure as its direct failure and assumes it is the root. It starts sending BPDUs to Eva-sw3 and claims to be the new root.
  2. As soon as Eva-sw3 receives the inferior BPDU from Eva-sw2, it starts to reconfirm its non-designated ports instead of waiting max_age. It sends a RLQ query on its root port for root bridge Eva-sw1.
  1. Root bridge Eva-sw1 receives the query and immediately answers with a RLQ response that specifies RB is alive. Once Eva-sw3 receives RLQ response means come to know it still has connectivity to the root bride. Eva-sw3 can then age out immediately the information stored on port Fa0/1. Fa0/1 transitions to listening and starts to send BPDUs. Means by passed Max_Age timer and saved 20sec.
  1. Eva-sw2 receives the better BPDU from Eva-sw3 and considers now the ports that lead to Eva-sw3 as its root port.

STP Features


  • Port immediately moves into Forwarding state, bypassing the listening and learning state.
  • Portfast enabled port is also known as Edge port, term can be used interchangeably.
  • Remember that by default spanning tree sends BPDUs from all ports regardless of whether PortFast is enabled or not.

Where do we enable Portfast?

we enable Portfast on user facing port where we are not suppose to receive BPDUs as end users are connected.
We can enable Portfast at global level as well interface level.

Why do you want to enable PortFast?

The PortFast feature is introduced to avoid network connectivity issues. Few applications like DHCP need to connect to the network immediately, else they will timeout. So if we are using PortFast means Port will come up immediately
without relying on forwardd delay and there will not be timeout for such kind of Applications.


If Portfast enable interface receive BPDUs then come out from Portfast Status and act as normal STP port until it goes down and comes back up. Remember one thing Portfast doesn’t disable STP. Portfast enabled port sends BPDUs and participates in STP.


  • Minimize the unknown UnicastFlooding.
  • Don’t generate TCN (CAM table is not “flush out”).


  1. Spanning-tree Portfast Default(This global level command, enable Portfast at all Access Port on switch.)
  1. Spanning-tree Portfast: – this is interface level command enable Portfast on that access port only.
  1. Spanning-tree Portfast Trunk : This is interface level command enable port fast on that trunk port.

Why this command as trunk is usually connected to another switch??

This command is designed for servers which are running 802.1q on their NICs and carrying multiple VLANs over them and port is configured as trunk.

  1. Show spanning-tree int fax/y portfast
  1. Show spanning-tree int fax/y detail


  •  BPDU filter is used to filter “sending or Receiving” BPDU on Switchport.
  • if we enable BPDU guard on same interface as bpdufiltering, BPDUGuard has no effect because BPDUFilter take precedence over BPDU Guard.

Where do we enable BPDUFilter?

It is extremely useful on those switchport (user facing) which are configured as Portfast and there is no need of send or receive BPDUs. We can enable it at global level as well interface level but it works differently.

Why do we need BPDUFilter?

We can use bpdufilter when we want to add a new switch for emergency into our network but we don’t want it to participating in spanning tree. Please do remember bpdufilter disable the STP so be careful while using this feature.
We may run into Loop if we are connecting multiple port to same switch with bpdufilter.

Global Level Interface level
When we enable at globally than it filter out -bound BPDUs (means prevent sending of BPDUs). The interfaces still send some BPDUs(11) at the link-up, if a BPDU is received, the interface loses its Port Fast status and port become normal STP port and BPDU Filtering is disabled until port goes down and comes back.

spanning-tree portfast bpdufilter default

The interface doesn’t send any BPDU and ignores the received ones. This basically disables spanning-tree on the interface, so use it carefully.


spanning-tree bpdufilter enable

BPDU Guard

  • BPDU guard prevents a port from receiving BPDUs or from being connected to unauthorized switches or accidental connection to switching devices.
  • When BPDU Guard enable port receives BPDUs, Port will be moved in “err-disabled” State.

Where do we enable BPDU Guard?
we enable BPDU Guard on user facing port where we are not suppose to receive BPDUs as end users are connected.

We can enable it at global level as well interface level. Please see below.

Global Level Interface Level
“spanning-tree portfast bpduguard default” –> Activates the BPDUGuard only on Ports that operates in portfast state. if BPDUGuard enabled port receive BPDU the it moves to err-disabled state. Portfast will not be disabled but port will go in err-disable first. spanning-tree bpduguard enable” Activates the BPDUGuard on port regardless Portfast status. If BPDUGuard enabled port receive BPDU then it moves to err-disabled state, regardless of the Port Fast status.

Root Guard

  •  Root guard prevents an unauthorized switch from becoming RB.
  • If this Root Guard enable port recieve BPDU with:
  1. higher bridge id then port act as normal STP Port means no action is taken by root guard.
  2. lower Bridge then port move into “Root inconsistent” state.

** Root Guard enable port can forward and relay bpdu’s but can’t become Root. Enable switch port that we don’t want to be root.

**Root guard can be at interface level using spanning-tree guard root

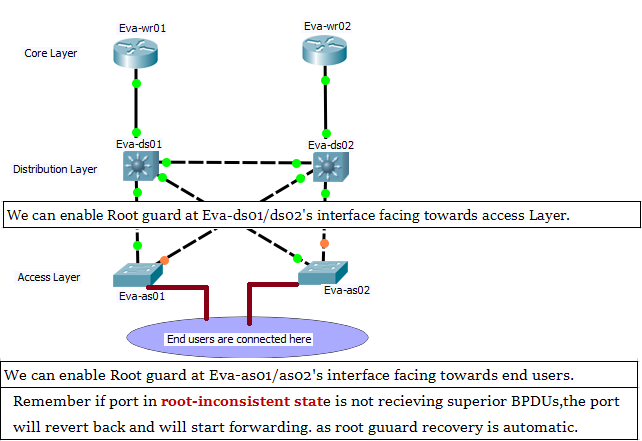

Where we enable the Root Guard feature?

UDLD (Unidirectional Link Detection)
UDLD is a Layer 2 (L2) protocol that works with the Layer 1 (L1) mechanisms to determine the physical status of a link.
1. UDLD works by exchanging special frames between the two Switches using well-known MAC address 01:00:0C:CC:CC:CC.
2. Each switchport configured for UDLD sends UDLD protocol packets that contain the port’s own device/port ID, and the Neighbor’s device/port IDs seen by UDLD on that port. Neighboring ports should see their own device/port ID (echo) in the packets received from the other side.
This echo-algorithm allows detection of these issues:
1st. Link is up on both sides; however, packets are only received by one side.
2nd. Wiring mistakes when receive and transmit fibers are not connected to the same port on the remote side
## If the port does not see its own device/port ID in the incoming UDLD packets for a specific duration of time, the link is considered unidirectional.
There are Two operational Mode of UDLD:-

Normal mode (enable)
– Port is allowed to continue its operation merely marks the port as being in undetermined state and generates a syslog message.
Aggressive mode – Port is place in Errdisable state and cannot be used.
Switch (config)# udld {enable | aggressive}
Loop Guard:-
**Loop guard also protects against ports erroneously transitioning to forwarding mode.
** Loop guard will also protect against STP failures, designated switch not sending BPDUs due to software problems.
Switch (config)# spanning-tree loopguard default
Switch (config-if)# spanning-tree guard loop



  • Awesome one.. we have small pack of big information… Thank you so much for making such a good document. Can you please let me know can we have applied packet capture on Packet tracer ??

    Vinay Sharma Reply
  • Thanks for documents. Awesome document’s.

    Salman Reply
  • Very well explained

    Aseem Reply
  • Thank you very much ,this is very helpful , cheers

    Jaswinder Singh Reply
  • Great Content & Very well Explained.

    shekhar kumar Reply
  • thanks its clear to understand

    Sudheer Mishra Reply
  • Perfect one to understand the STP in detailed.

    Shivakumar Reply
  • Thanks, I’ve been looking for details about this subject for ages and yours is the best I have discovered so far.

    Kazuko Falis Reply

Leave a Reply

Your email address will not be published. Required fields are marked *
